Schuco Door ADS 75 SI

The high insulation Schüco Door ADS 75.SI (Super Insulated) offers outstanding insulation values and is therefore the ideal solution for buildings with the highest requirements in terms of energy management and architecture. Optional fittings also mean that it can be used as a multi-purpose door and integrated in the building management system. The timeless aesthetic design fits seamlessly with the Schüco façade and window systems.

The high insulation door for the highest requirements in terms of function and energy management.
Optional
Residential Line (RL), SoftLine (SL) or Heavy Duty door (HD) models
Automatic door seal
Easy-access solutions
Concealed hinges
Leaf-enclosing infill panel
Emergency fittings
Emergency exit switch
Access control / door manager
Radio control
Integration in building management system

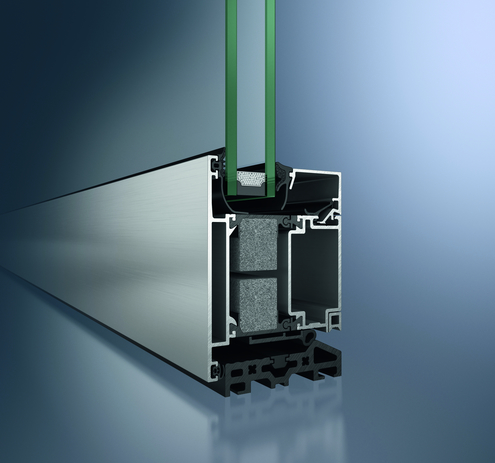

Schüco ADS 75.SI, highly thermally insulated aluminium door system
With 75 mm basic depth.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.

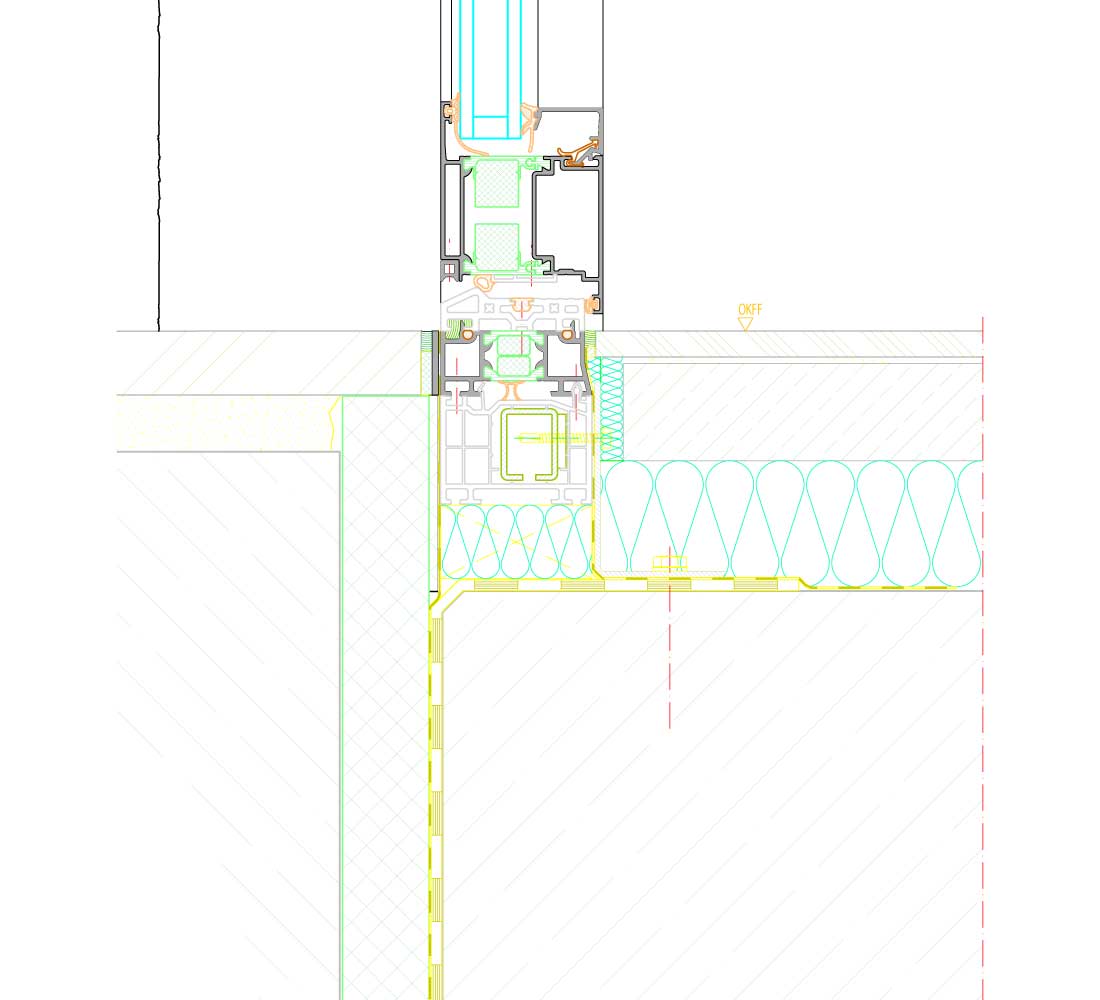

If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.



Profile basic depths:
Outer frame, mullion, transom 75 mm
Leaf frame (door), flush-fitted 75 mm
Leaf frame (door) with internal rebate 85 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Leaf frame
(Door, with internal rebate) 73 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm
